Definition of fuel cells

A fuel cell can be defined as an electrochemical cell that generates electrical energy from fuel via an electrochemical reaction.

A fuel cell is an electrochemical device that uses an electrochemical reaction to produce electrical energy from fuel. These cells require a continuous input of fuel and an oxidizing agent (generally oxygen) in order to sustain the reactions that generate electricity. Therefore, these cells can constantly generate electricity until the supply of fuel and oxygen is cut off.

These cells need a constant supply of fuel and an oxidising agent (typically oxygen) to continue the chemical reaction that generates electricity. So long as fuel and oxygen are available, these cells can continue to produce electricity. Once the supply of fuel is stopped, chemical reactions will discontinue and so is the generation of electricity.

Type of fuel cells

Fuel cells are classified on the basis of their working chemicals involved. Some examples are-

• Polymer electrolyte membrane fuel cells. ...
• Direct methanol fuel cells. ...
• Alkaline fuel cells. ...
• Phosphoric acid fuel cells. ...
• Molten carbonate fuel cells. ...
• Solid oxide fuel cells. ...
• Reversible fuel cells.
• Reversible fuel cells.
• Alkaline fuel cells.
• Polymer electrolyte membrane fuel cells.
• Solid oxide fuel cells.
• Direct methanol fuel cells.
• Phosphoric acid fuel cells.
• Molten carbonate fuel cells.

Hydrogen - Oxygen fuel cell

The hydrogen-oxygen fuel cell is one such cell that has seen great success. The above cell was used as the primary source of electrical energy on the apollo moon flights. The weight of the fuel was 200kg which was sufficient for 11 days in space. This is in comparison to the many tonnes that the engine-generator set would have required. The product which was obtained from the fuel cell was water. Astronauts are used to drink these water for hydration.

Working principle of Hydrogen-Oxygen fuel cell

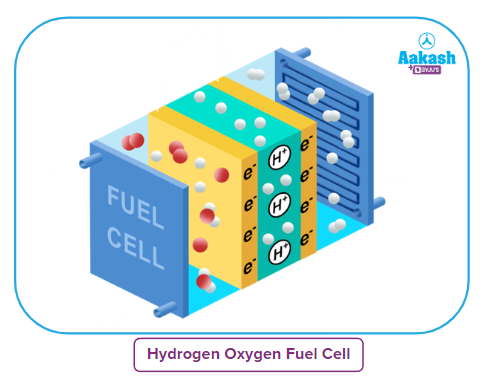

The general design of H_₂ - O_₂ fuel cell is shown in the figure. It consists of porous carbon electrodes containing suitable catalysts (generally finely divided platinum and palladium) incorporated in them.

The figure depicts the basic layout of an H_₂ - O_₂ fuel cell. It is made up of porous carbon electrodes that are integrated with suitable catalysts, typically finely divided platinum and palladium.

 As the electrolyte, a concentrated KOH or NaOH solution is placed between the electrodes. Hydrogen and oxygen gasses are bubbled through the porous electrodes into the KOH/NaOH solution.

A concentrated KOH or NaOH solution is positioned between the electrodes to act as the electrolyte. Gas bubbles of hydrogen and oxygen are introduced into the KOH/NaOH solution through the porous electrodes.

The following electrode reactions take place :

At anode: 2H_₂(g) + 4 OH^- (aq) → 4H_₂O(l) + 4e^-
At cathode: O_₂(g) + 2H_₂O (l) + 4e¯ → 4 OH^- (aq)
Overall reaction: 2 H_₂(g) + O_₂(g) → 2H_₂O (l)

Thus, in these cells, the reactants are fed continuously to the electrodes and the products are removed continuously from the electrolyte compartment.

Advantages of Hydrogen-Oxygen fuel cells.

The three main advantages of Hydrogen-oxygen fuel cells are as under:

• Because of the availability and hence continuous supply of hydrogen and oxygen, such cells never become dead. Such a cell is usually operated temperature of 70- 140°C and gives a potential of about 0.9 V.

The theoretical voltage of the cell may be calculated from half-cell reactions as follows:

2 H_₂(g) + 4 OH(aq) → 4H_₂O (l) + 4e^-    E⁰ = + 0.40 V
O_₂(g) + 2H_₂O (l) + 4e^- →  4OH^-(aq)      E0 =  -0.83 V
E⁰_cell = +0.40 V (-0.83 V)= 1.23 V

• Theoretically, the fuel cells are expected to have an efficiency of 100%. However practically they give an efficiency of 60-70 %. Still, they are much superior to the thermal power plants in which fuels are burnt to produce heat which then changes water into steam to run the turbine. Such a power plant does not have an efficiency of more than 40%.

• They do not cause any pollution problems, unlike thermal plants which burn fossil fuels like coal, gas, oil, etc.

Efficiency of the fuel cell

As H is the heat of combustion and G is the useful work done, i.e., the electrical energy produced, therefore, the thermodynamic efficiency () of a fuel cell = .

for the H₂-O₂ fuel cell, theoretically, the value can be calculated as follows:

G =-n FE0cell = -(2) (96500 C mol) (1.23 V) = -237390 CV mol-1=-237.390 kJmol^-1
H=285.8 kJ mol-1

Difficulties in the construction of fuel cell

The construction of fuel cells is, however, faced with certain technical, economic and practical difficulties. The following are some examples: -

• Providing contact between the three phases needed in a fuel cell, i.e., the gaseous fuel, the liquid electrolyte, and the solid catalyst.
• The corrosiveness of the electrolytes used.
• High cost of the catalysts needed for the electrode reactions (Pd,Pt,Ag,etc.)
• Problem of handling gaseous fuels at low temperatures or high pressures.

Applications of fuel cells

Fuel cell technology has numerous applications. Currently, extensive research is being conducted in order to develop a low-cost automobile powered by a fuel cell.

• FCEVs, or fuel cell electric vehicles, use clean fuels and are thus more environmentally friendly than internal combustion engine-powered vehicles.
• They have powered numerous space expeditions, including the Apollo space program.
• Some fuel cells' portability is extremely useful in military applications.
• These electrochemical cells can also power a variety of electronic devices.

Practice problems

Q1. Which of the following statement is correct?

A. Fuel cell converts mechanical energy into electrical energy.
B. Fuel cell converts heat energy into electrical energy.
C. Dry cell is an example of a fuel cell
D. Nicad cell is an example of a fuel cell.

Answer: (B)

Solution: Fuel cells are the devices that convert the energy produced during the combustion of fuels like hydrogen, methanol, and methane directly into electrical energy. Hence, we can say that fuel cells convert heat energy into electrical energy. Dry cell is an example of a primary battery or cell and Nicad is a Nickel-cadmium storage cell is an example of a secondary cell or battery.

Q2. Which of the following solution can be used as an electrolyte during the construction of a Hydrogen- Oxygen fuel cell?

1. Conc. NaOH
2. Conc. KCl
3. Conc. NaCl
4. Conc. H₂SO₄

Answer: (A)

Solution: The electrons supplied by the battery react with the Na⁺ ions and water in the cathode, forming gaseous (H₂) and sodium hydroxide (NaOH). H₂ is released into the atmosphere, and NaOH is added to the aqueous solution, raising its pH.

Q3. Which product is released during the combustion of Hydrogen-oxygen fuel cells?

1. Salt
2. Water
3. Hydrogen gas
4. Nitrogen gas

Answer: (B)

Solution: During the combustion of the hydrogen-oxygen fuel cell water is collected at the product end. This was useful for the astronauts who used this water for drinking purposes.

Q4. Which of the following is not an advantage of fuel cells?

1. Cells never become dead.
2. It has an efficiency of 60-70%.
3. They don’t cause any pollution problems.
4. Construction cost is not very high.

Answer: (D)

Solution: Fuel cells have a lot of advantages such as, due to the continuous supply fuel cells never become dead, theoretically they should have 100% efficiency but as we know no system is practically 100% efficient. Still, fuel cells have 60-70% efficiency. As no fossil fuels are being used for combustion in fuel cells, they are eco-friendly. Apart from all these advantages, one major drawback is that the production cost is very high as they use expensive catalysts.

Q5. What is the thermodynamic efficiency of a hydrogen-oxygen fuel cell?

1. 98%
2. 52%
3. 45%
4. 83%

Answer: (D)

Solution: To calculate the thermodynamic efficiency of hydrogen-oxygen fuel cells we have to use the following formula:

thermodynamic efficiency () of a fuel cell
Where G = Work done during the production of electrical energy
H = Heat of combustion
for the H₂-O₂ fuel cell, theoretically, the value can be calculated as follows:
G =-n FE⁰_cell =  -(2) (96500 C mol^-1) (1.23 V) = -237390 CV mol^-1 = -237.390 kJmol^-1
H=285.8 kJmol^-1

Frequently Asked Questions (FAQs)

Question 1. Do fuel cells require heat to operate?
Answer: Fuel cells function similarly to batteries, but they do not need to be recharged. They generate electricity and heat as long as fuel is available. A fuel cell is made up of two electrodes, one negative (or anode) and one positive (or cathode), sandwiched around an electrolyte.

The two electrodes that make up a fuel cell are sandwiched around an electrolyte and are known as the cathode (positive) and the anode (negative), respectively.

Question 2. How fuel cells are different from batteries?
Answer: In layman's terms, a battery delivers previously stored energy, whereas a fuel cell converts the energy from a fuel to electricity. Electricity is generated by conventional generators as well, but fuel cells generate it directly through a chemical reaction.

Question 3. What is the durability of a fuel cell?
Answer: The fuel cell stacks are intended to last the vehicle's lifetime or approximately 150,000–200,000 miles. At the end of its life, the fuel cell will be disassembled and the materials recycled, similar to how vehicle components are recycled today.
